Air, in motion.
Pneumatic components for the machines you build.

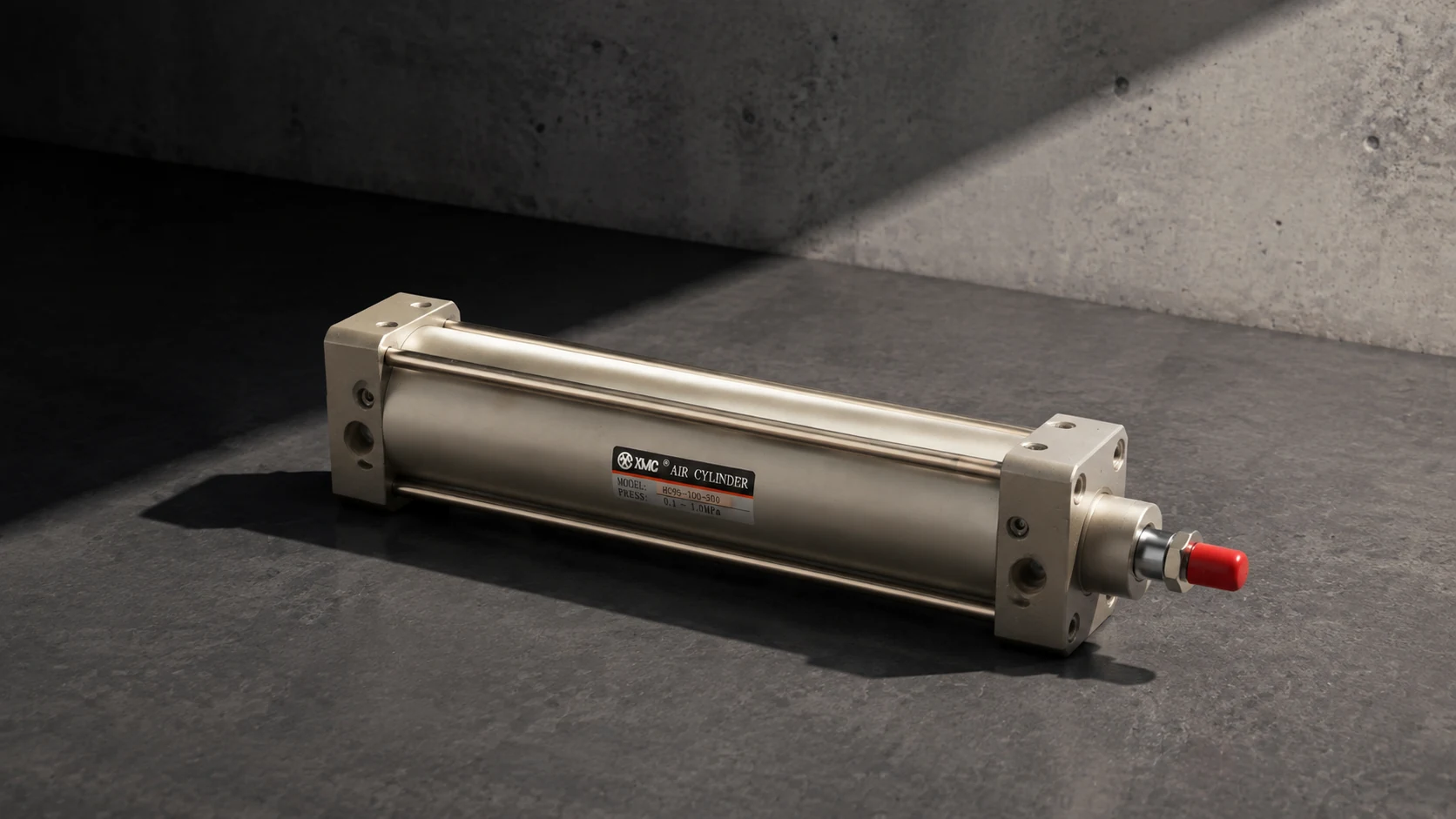

Discover the HC95 cylinder, from form to function.
Small details.
A closer look.

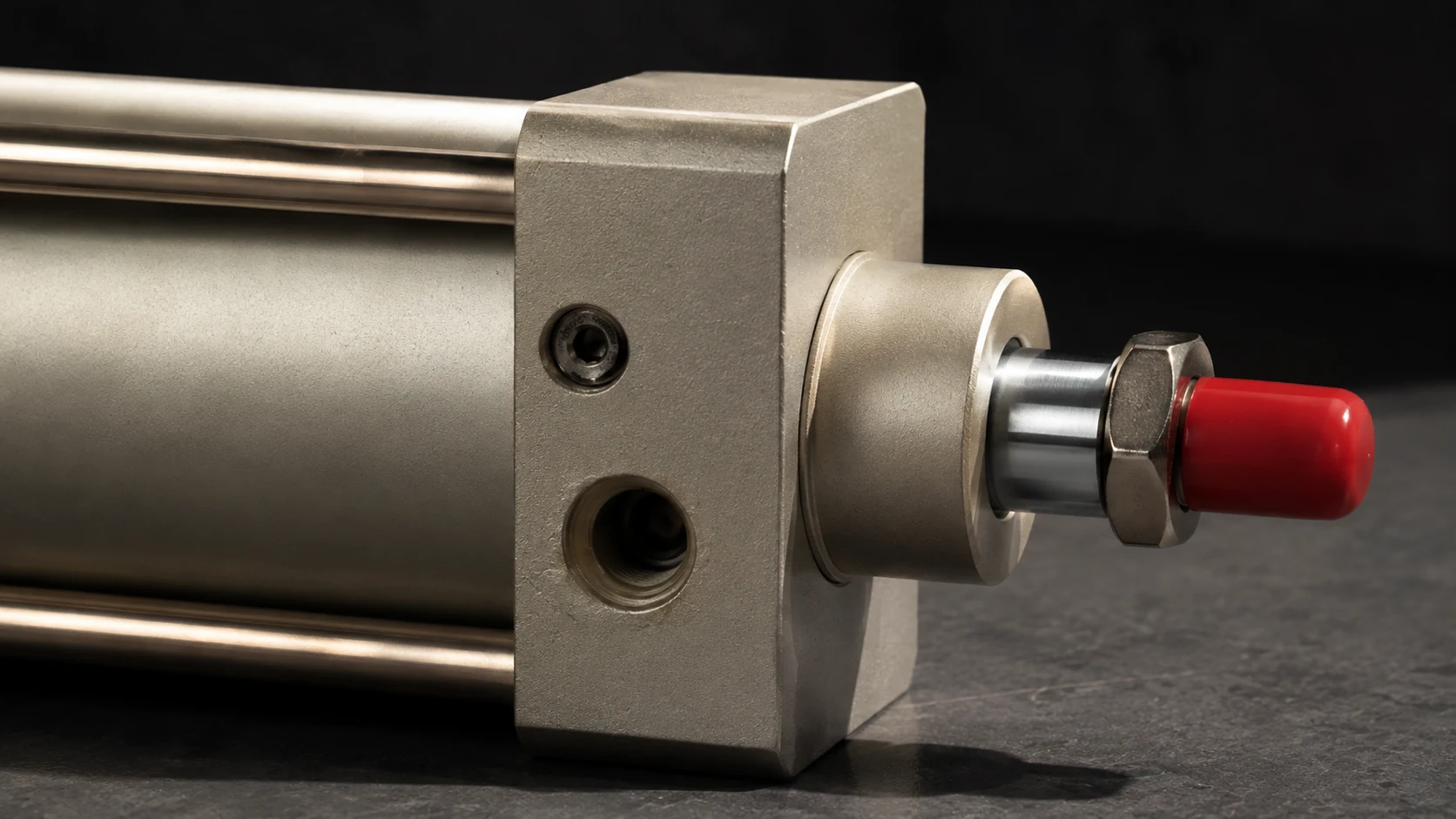

The barrel. The tie rods. The piston rod.
Each part of the same cylinder.
Tie-rod constructionLongitudinal rods connect the end caps around the cylinder barrel.
Linear actuationA single piston rod provides the visible point of movement.
From air.
To action.

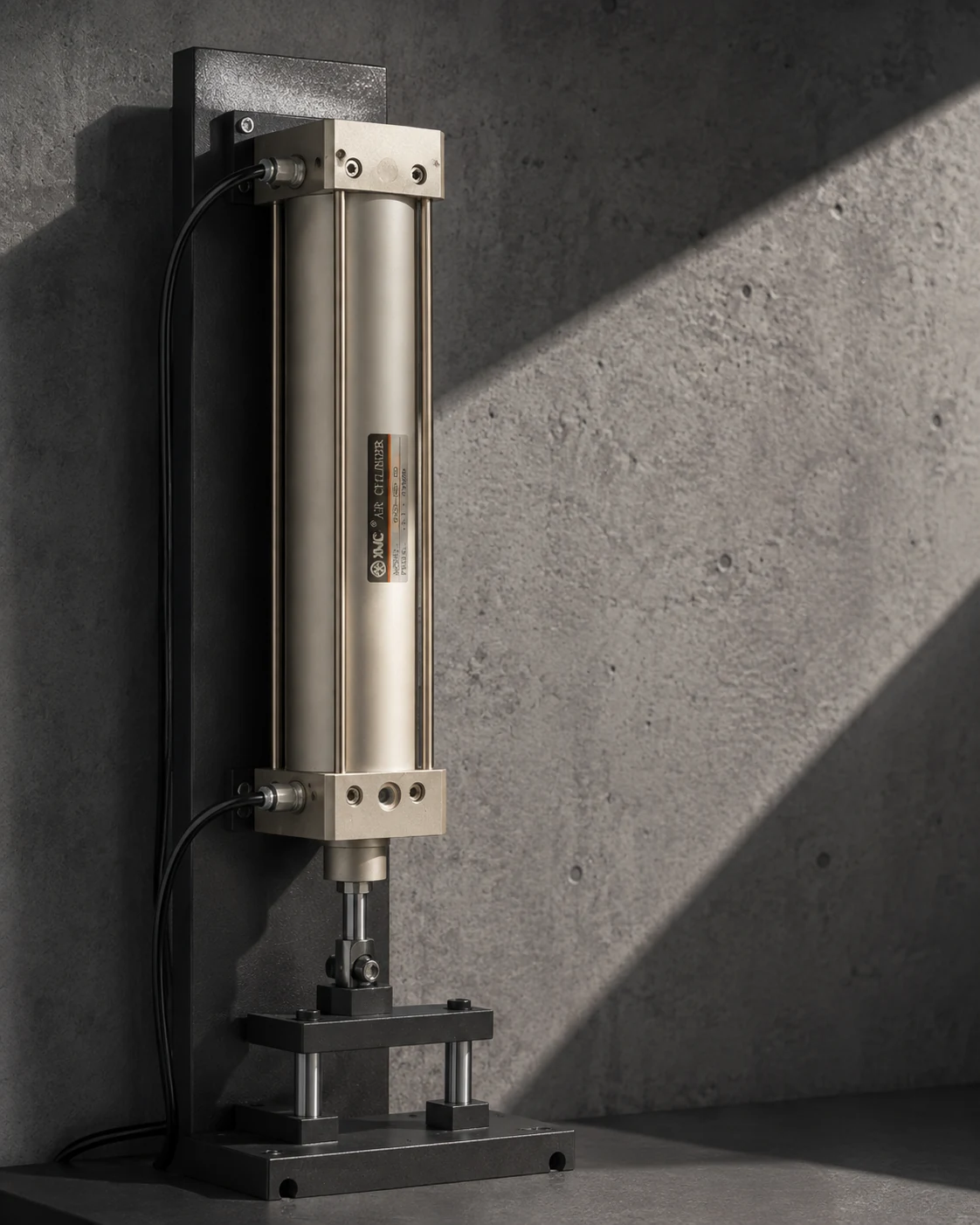

A cylinder translates compressed air into linear movement. Here, a simplified fixture shows that movement in context.
Start with your application.
Then find the right model.
Have a drawing or an application in mind?
Discuss your projectPrepare the air.
Control the start.
Three featured ranges for air preparation,
startup and equipment isolation.

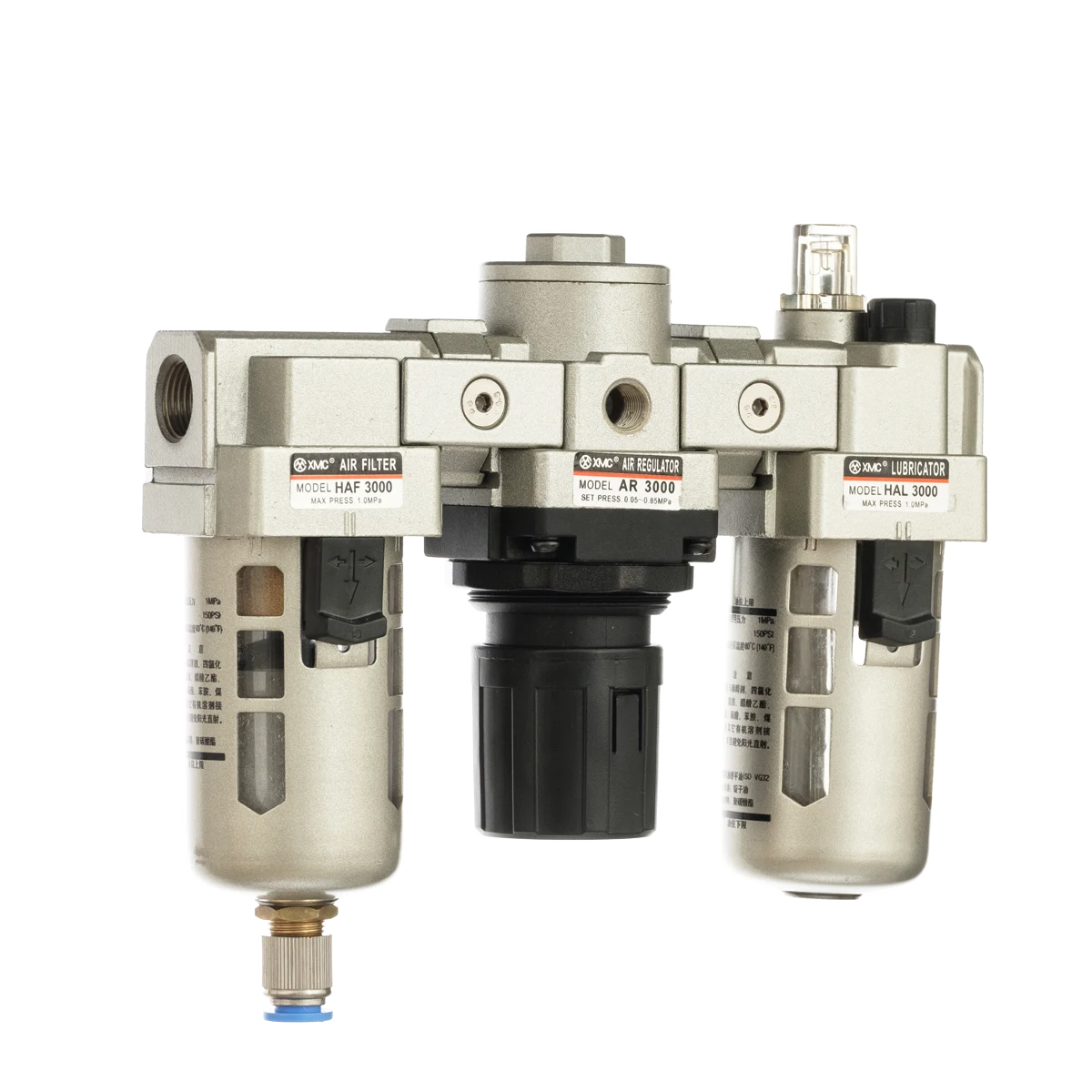

HAC3000 · HA air preparation
Original product photographFilter, regulate and lubricate in one combination. Explore the featured HAC2000–5000 range and select the size for your equipment.
Behind every part.
People at work.
Machining, assembly and inspection.
A look inside XMC in Ningbo, China.

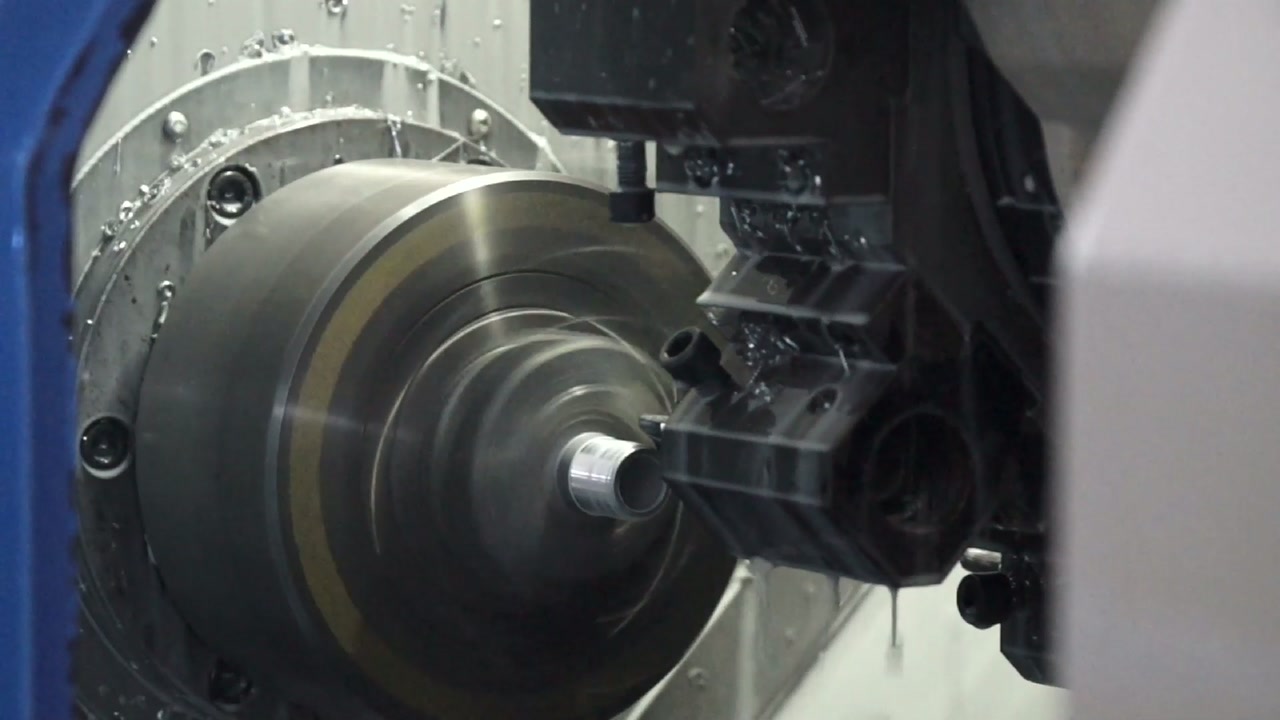

Machining
Metal parts, tools and workpieces on the production floor.
Assembly
Components brought together at dedicated workstations.
Inspection
A closer look at the equipment and people behind the product.
Details, documented.
From model references to dimensions.
Keep the technical information close.
The XMC catalogue.
Review product families, model references and dimension drawings as you plan your selection.
Download 2025 cataloguePDF · 23.8 MB · Web-optimized edition.
Your next machine.
Let’s start with a part.
Have a model in mind, or an application to discuss?
Tell the XMC team what you are building.
A useful starting point.
- The component
- Series, model or a reference drawing
- The application
- Pressure, port size and installation space
- The project
- Quantity and destination
Submit your inquiry online, share a drawing link, or email PDF/JPG attachments directly to XMC.
